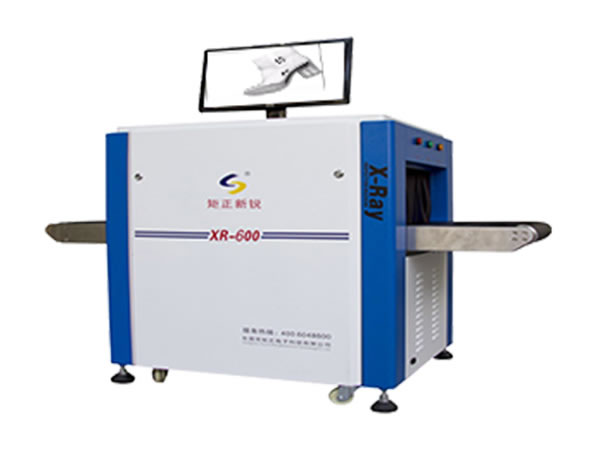

X-Ray Inspection System, XR600

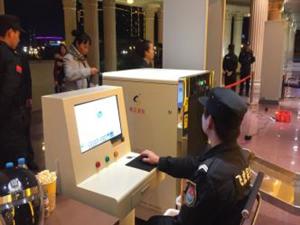

Hold Baggage Screening Device, Security Check System, Baggage Detection Equipment for Railway Station, X-Ray Detection Solution

Main Features
1. XR600 security check equipment employs an X-ray image processing system. The FPGA chip with high-speed algorithm, high-resolution large-screen display, extended functionality, accompanied with user-friendly human-machine interface provides a high inspection accuracy
2. Its processor with high speed adopts fully-embedded digital signal processing system
3. Multi-mode 0.4 × 2mm CMOS image sensor from Japan is adopted for the X-ray detecting equipment
4. X-ray tube made in the US is power and current adjustable

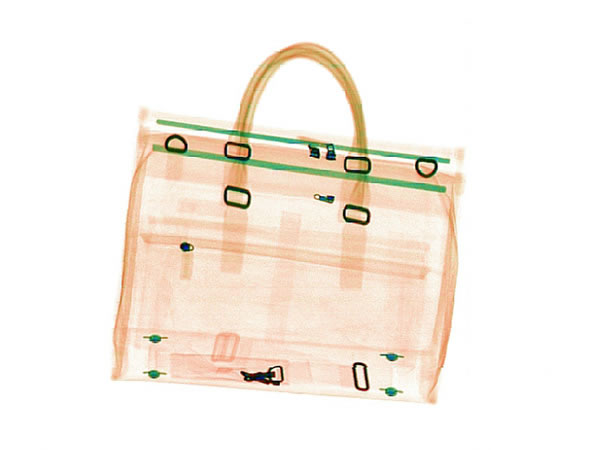

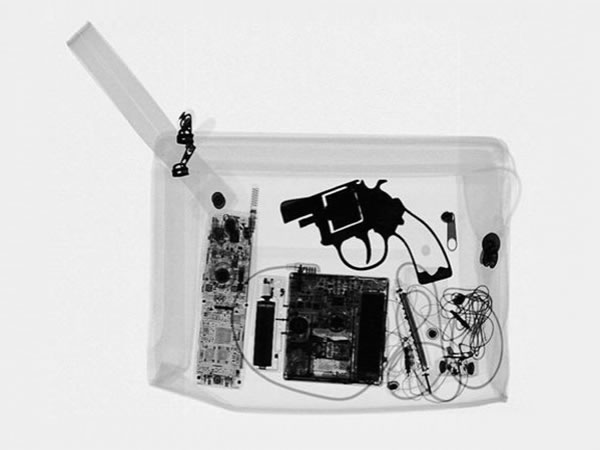

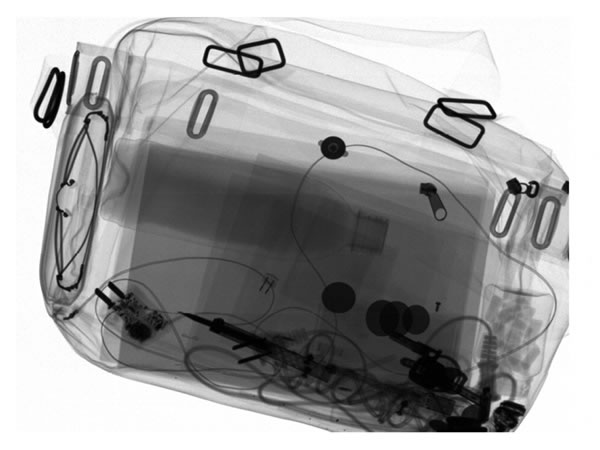

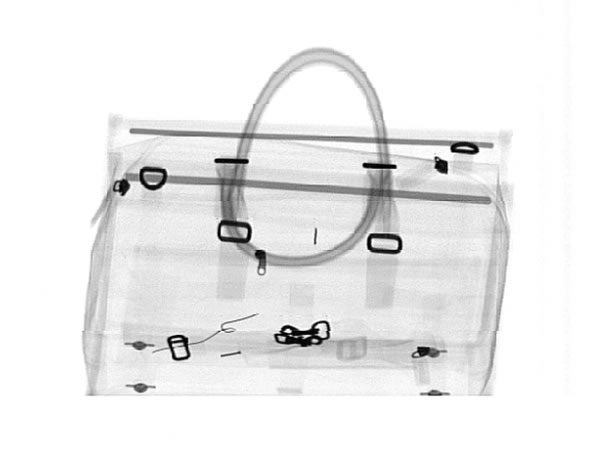

5. It is of high inspection accuracy and can clearly display the smallest debris, foreign bodies, and even 1.2mm-diameter metal wires
6. Inspection speed is adjustable, with the standard value to be 12m/min (600 bag/h)

Passageway size 505mm (W) * 305mm (H)
Machine dimension 1650*780*1200mm
Conveyor height 700-800mm
Conveyor speed 0.22 m/s
Rated conveyor load 110 kg
X-ray volume for single inspection < 1.5 μ GNy
X-ray penetration 43mm-thick steel plates
X-ray leakage 0.752 μ Gy/h; in line with national health and safety requirements on radiation devices
Voltage AC220V, 50 ± 3Hz
X-ray tube voltage KV 100~160 (adjustable)
Power 0.3kw/h
Working environment temperature: 0℃~60℃; humidity: 20%~90% (non-condensable gas)
Noise ≤ 57dB
