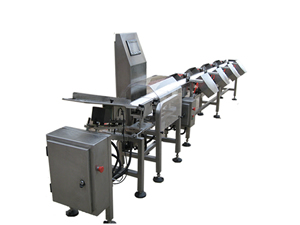

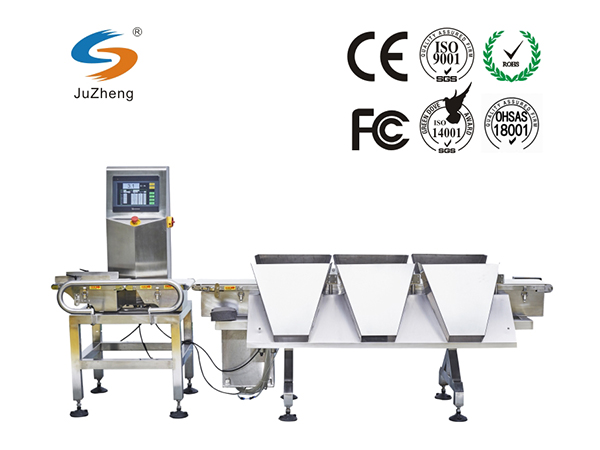

Checkweigher, XR-CZ002-9D

weigher, weighing system, hoper scale

1. XR-CZ002-9D checkweigher is designed with 10-inch color touch screen, which is like a smartphone, easy to operate.
2. The checkweigher is available in a quick belt change. Besides, it adopts a buckle design, making it easy and convenient for belt cleaning.
3. Featured by 10 shortcut menus, available in changing products effectively without stopping the machine.
4. Being able to search and print the unqualified products.
5. Providing feedback signals towards the production, adjusting packing precision of the upstream packing machine.
6. Core components of the checkweigher are all imported, ensuring stable operation of the equipment.
7. We have our own independent processing plant, which helps to produce low-cost, low-prince products as compared with the other products with the same grade.
8. We have domestic leading sorting and rejector system, avoiding materials spilling resulted from fall down of products in the product sorting process, ensuring integrity of the tested objects.

Model: XR-CZ002-9D
Weighing range: 6g-400g
Weighing zone: Length: 300mm, width: 220mm (customizable)
Weighing precision: ±0.2g
Display resolution: 0.1g
Sorting speed: 160 pieces/ min
Height of the conveyor belt to the ground: 700mm±50mm(Adjustable)
Display: 10-inch large touch screen
Control power supply: AC 220V( fluctuation+10% 、-15%,50/60Htz)
Working temperature: 0°C - 40°C
Humidity: 90% relative humidity( no condensed water)
Material, surface treatment: Stainless steel 304, polished surface
Devices used: Printer, ink-jet printer, labelling machine, metal detector
Weighing sensor: Germany HBM sensor
Engine: Germany JSCC
Optional conveyor belt: Food-grade belt, PU belt, PVC belt
Other standard equipment: Windshield (colorless and transparent), calibration weight

As the overall dimension of the tested products and working conditions of the equipment vary, there might also be slight differences in precision of speed test.
