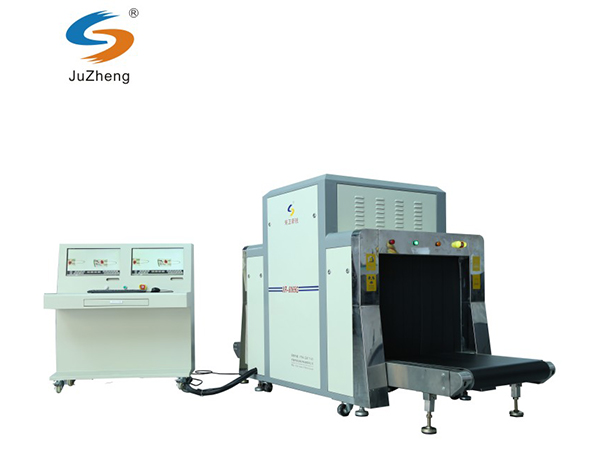

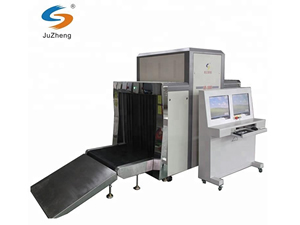

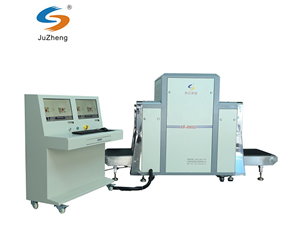

X-Ray Security Screening System, XR-8065G

airport baggage scanner, luggage inspection, station security

XR-8065G X-Ray security screening system has been widely used for detecting dangerous items covering drugs and explosives in airport, checkpoint, subway station and railway station.

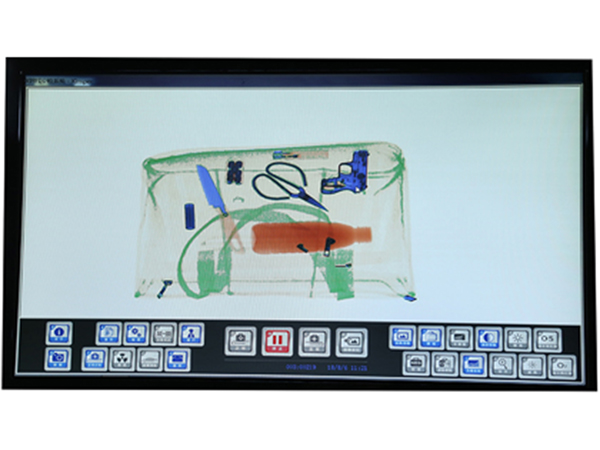

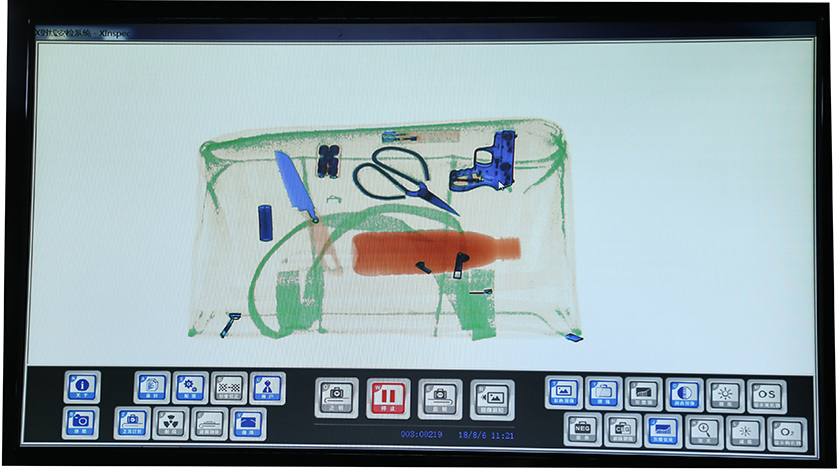

1. Multi-energy X-ray tomography: Orange for the organic items, blue for inorganics and green for mixtures.
2. Available in high-energy or low-energy switch, and the system helps to detect drugs and powder explosives.
3. X-ray sensor: Linear X-ray photodiode detector array (multi-energetic), 12bit Deep.
4. Monitor display: High resolution color, 17-inch LCD display.
5. Image processing: The security screening system features edge enhancement, switch of sharp/poor color contrast, less dark, image saving, image retrieval.

Passageway size 800(W)*650(H)mm
Conveyor speed 0.22m/s
Rated load of conveyor 200kg
X-ray volume for single inspection < 1.7μGy/h
Resolution < 0.0787mm cooper wire
Spatial resolution Horizontal: 1.0mm, vertical: 1.0mm
Penetration resolution 0.254mm
X-ray penetration ≥ 38-40mm steel plate
Film safety Guarantee ISO1600 Film
X-ray leakage < 0.05μGy/h
Image grey level 4096
Max image resolution 1024 * 1280 pixel
Image processing 24bit real time-processing
Storage temperature/humidity -20°C-60°C/20%-95%(condensable)
Operation power 220VAC(±10%)50±3Hz
Power consumption 1.0 KW (max), 1.0KW ,noise: < 55db
Warranty 24 months
Certification CE/ROHS/ISO9001
Color Grey
Supply capacity 35 Sets/week
Package Strong wooden box
