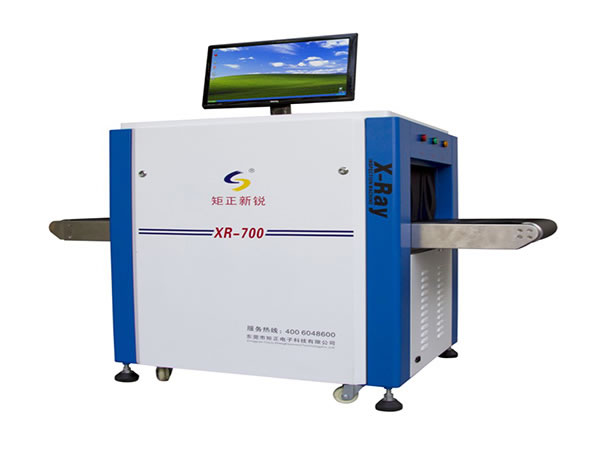

X-Ray Inspection System, XR700

Baggage Screening Equipment, Security Imaging System, Airport Security Check Machinery, Bag Scanner, Baggage Scanning Machine

Main Features
1. XR700 security inspection equipment operates at a standard speed (adjustable) of 12m/min. The X-ray tube is made in the US, with the voltage and current adjustable
2. Sensor: multi-mode 0.4×2mm CMOS image sensor made in Japan
3. Processor: high-speed fully-embedded digital signal processing system
4. Image processing: featuring high accuracy with a combination of high-performance X-ray image processing system, FPGA chip with high-speed algorithm, high-resolution large-screen display, extended functionality, and user-friendly human-machine interface

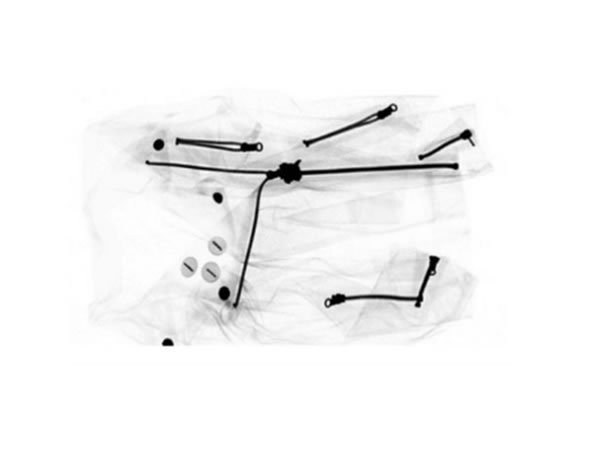

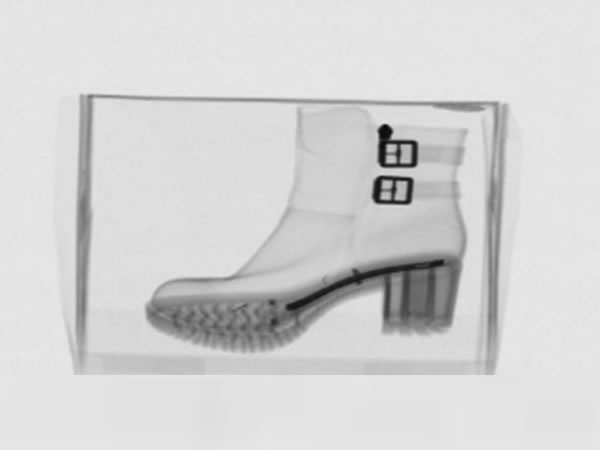

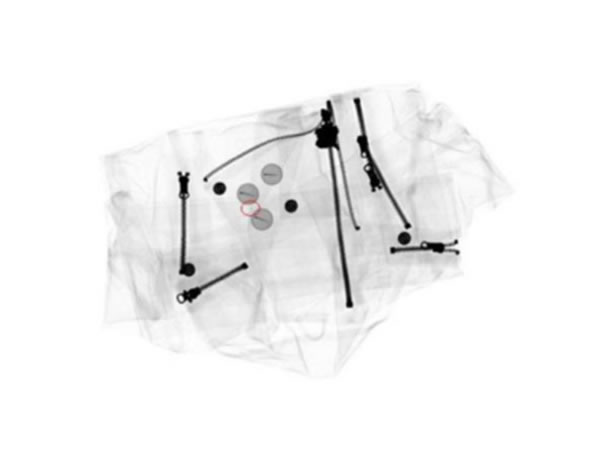

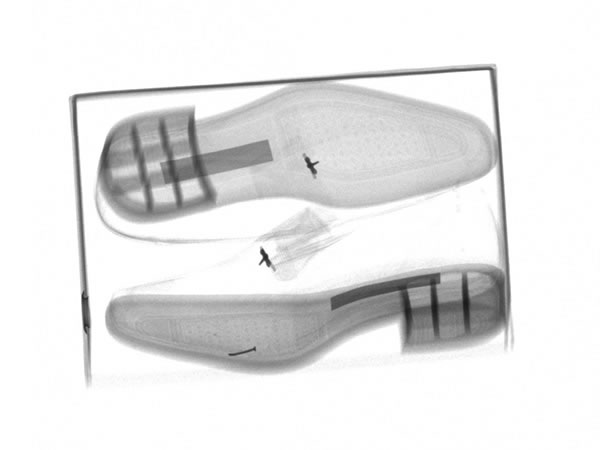

5. Inspection accuracy: the baggage screening machine is able to clearly display the smallest debris, foreign bodies, and even 1.2mm-diameter metal wires

Passageway size 505mm (W) * 305mm (H)
Machine dimension 1650*780*1200mm
Conveyor height 700-800mm
Conveyor speed 0.22 m/s
Rated conveyor load 110 kg
X-ray volume for single inspection < 1.5 μ GNy
X-ray penetration 43mm-thick steel plates
X-ray leakage 0.752 μ Gy/h; in line with national health and safety requirements on radiation devices
Voltage AC220V,50 ± 3Hz
X-ray tube voltage KV 100~160 (adjustable)
Power 0.3KW/h
Working environment temperature: 0℃~60℃; humidity: 20%~90% (non-condensable gas)
Noise ≤ 57dB
