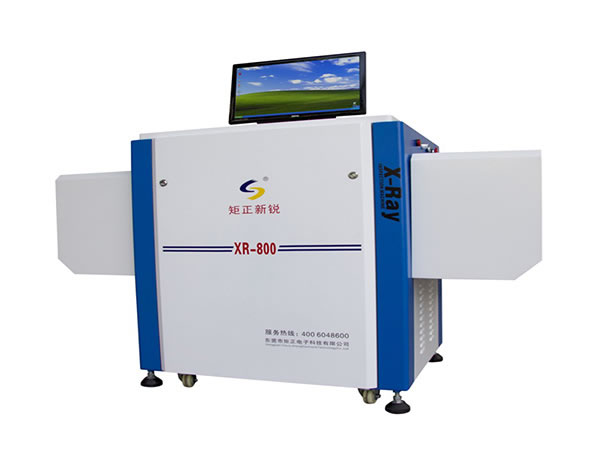

X-Ray Inspection System, XR800

Airport Cargo Inspection System, Baggage Checking Machinery at Railway Station, Luggage Screening Equipment, X Ray Screening Machine Company

Main Features
1. XR800 baggage inspection system runs at a standard speed of 12m/min (600 bag/min); with the speed adjustable
2. X-ray tube made in the US with the voltage and current adjustable
3. Sensor: multi-mode 0.4×2.0(mm) CMOS sensor from Japan
4. High-speed fully-embedded DSP system
5. The baggage screening system employs X-ray image processing system, FPGA chip with high-speed algorithm, high-resolution large-screen display and user-friendly HMI for high inspection accuracy

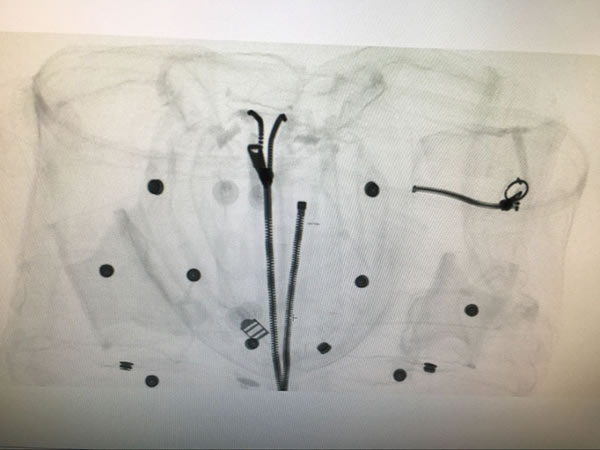

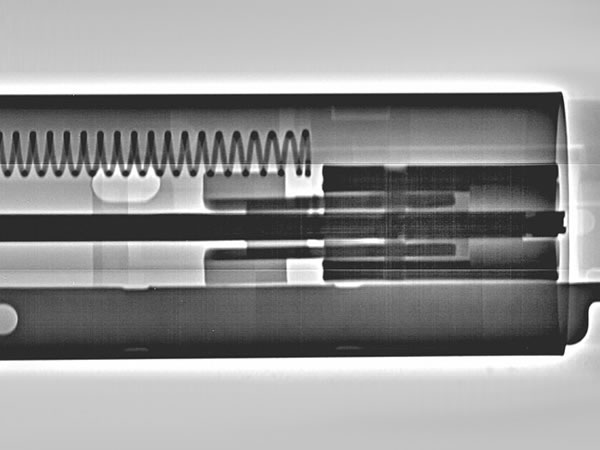

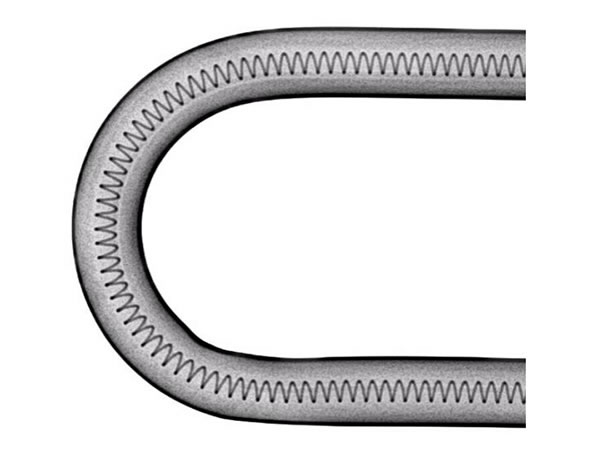

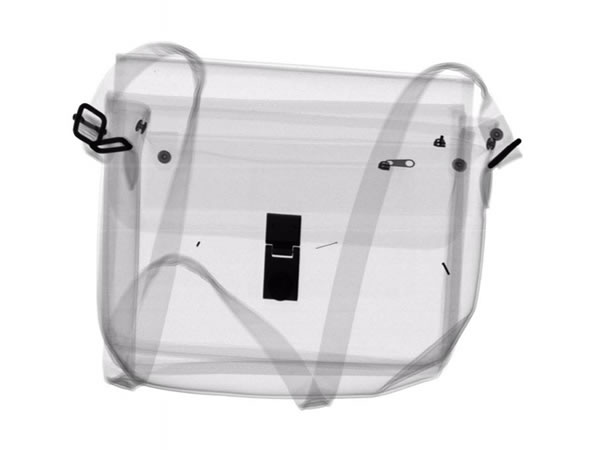

6. Testing accuracy: the smallest debris, foreign bodies, and even 0.8mm-diameter metal wires are clearly displayed

Passageway size 505mm (width) ×305mm (height)
Machine dimension 1650*780*1200mm
Conveyor height 700-800mm
Conveyor speed 0.22 m/s
Rated conveyor load 110 kg
X-ray volume for single inspection < 1.5μGNy
X-ray penetration 43mm-thick steel plates
X-ray leakage 0.752μGy/h; in line with national health and safety requirements on radiation devices
Voltage AC220V, 50±3Hz
X-ray tube voltage 100~160 kV (adjustable)
Power 0.3KW/h
Working environment temperature: 0℃~60℃; humidity: 20%~90% (non-condensable gas)
Noise ≤57dB
