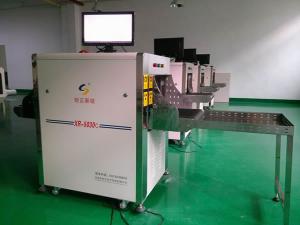

X-Ray Security Screening System, XR-5030

Train Station Security Machinery, Image Scanning Machine, X Ray Scanner, Airport Security Equipment Company, Baggage Checking Machine

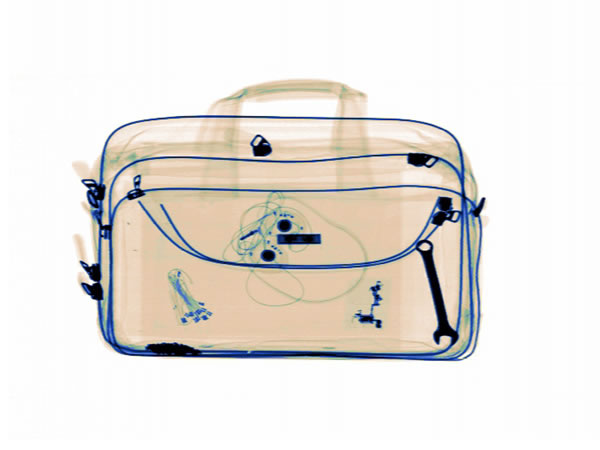

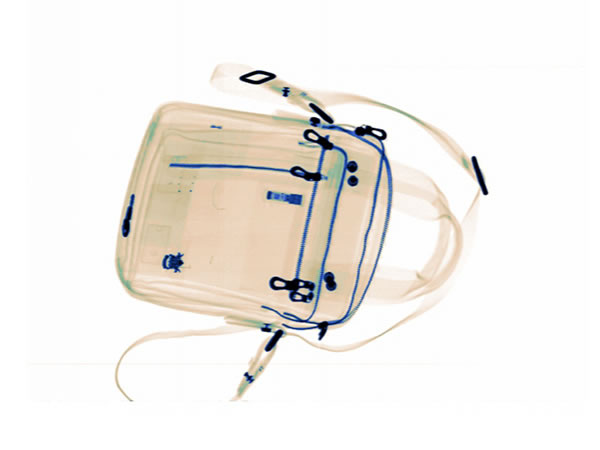

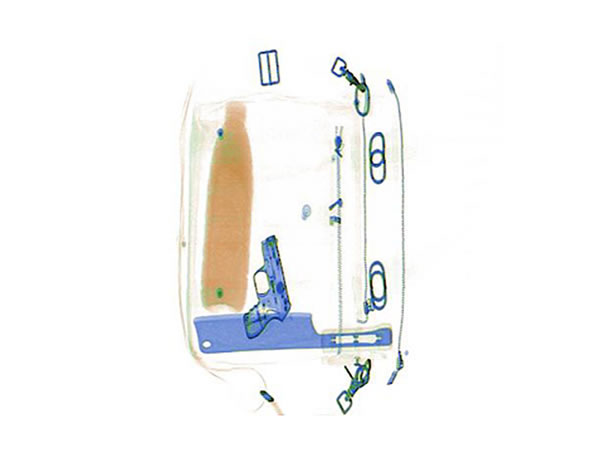

XR5030 security inspection equipment is able to save images fast in real time and work continuously. Users can accomplish any image processing operations on the machine. Jinzheng is a professional Chinese airport security equipment provider. Choose us to be your trustworthy detection equipment supplier.

Passageway size 500mm (width) ×300mm (height)
Conveyor speed 0.22 m/s
Rated conveyor load 150 kg
X-ray volume < 1.5µGNy
Resolution 0.0787mm-diameter metal wires
X-ray penetration 43mm-thick steel plates
Effect on film safe for ISO1600 film
X-ray volume for single inspection ≤1.0μGy/h
Leakage volume < 0.05µGy/h
X-ray direction from the top
Tube current 0.4~0.5mA (adjustable)
Tube voltage 100~160 kV (adjustable)
Beam divergence angle 60°
Cooling /operation cycle sealed oil cooling /100%
Working Environment
Temperature/humidity 0 ℃~45 ℃ /20%~95% (non-condensable gas)
Storage temperature/humidity -20 ℃~60 ℃ /20%~95% (non-condensable gas)
Voltage 220VAC (±10%) 50±3Hz
Power loss 1.0KW (max)
Noise < 55dB
Operator station 3-strand cable between operator station and host
