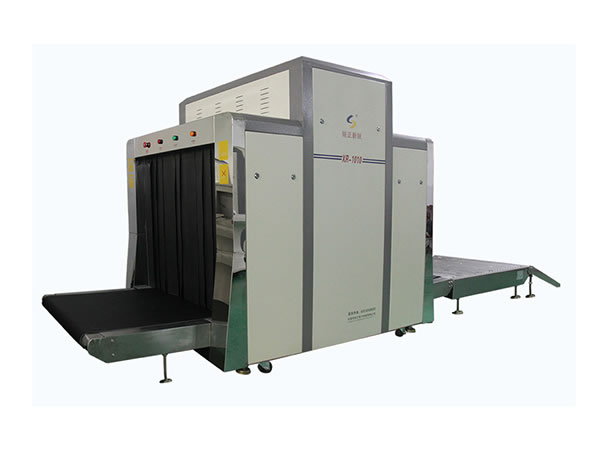

X-Ray Security Screening System, XR-100100

Air Cargo Security Inspection Machinery, X-Ray Scanning Machine, Equipment for Airport Security Checking, Train Station Security Solution

Main Features

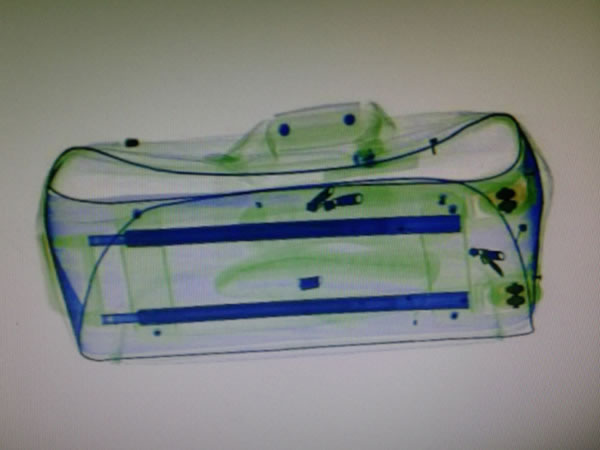

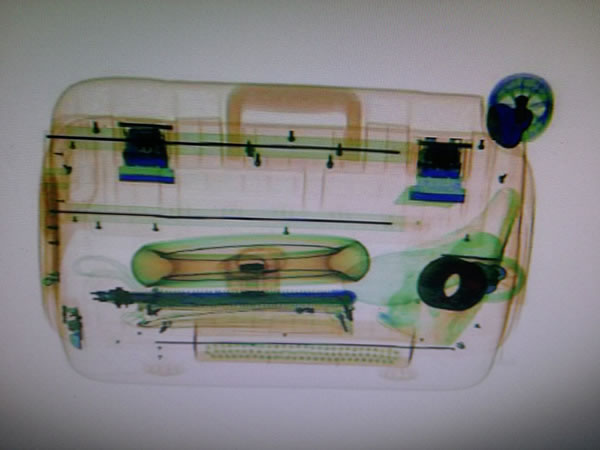

1. XR-100100 series X-ray screening system is designed with multiple-color display: orange for organics, blue for inorganics, and green for mixture

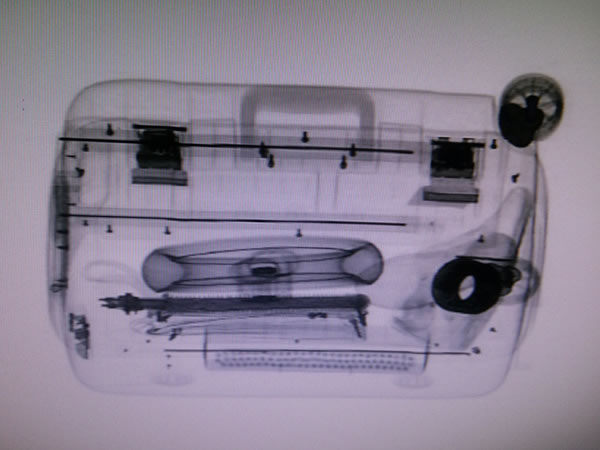

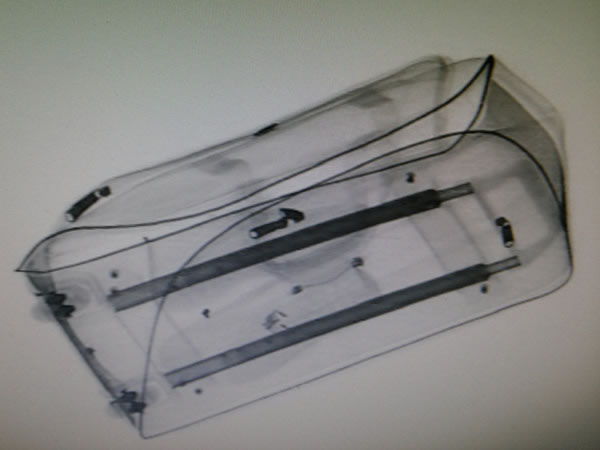

2. High/low energy switch: high energy means metal, low energy means nonmetal
3. It is able to detect dangerous items like drug and explosives
4. When something abnormal is found, the baggage inspection machine will alarm automatically

Passageway size 1000mm (width) × 1000mm (height)
Conveyor speed 0.22 m/s
Rated conveyor load 200 kg
X-ray volume for single inspection < 1.5µGNy
Resolution 0.0787mm-diameter metal wire
X-ray penetration 43mm-thick steel plates
Effect on film safe for ISO1600 film
X-ray volume ≤1.0μGy/h
Leakage volume < 0.05µGy/h
X Ray Generator
X-ray direction from the top
Tube current 0.4~1.25mA (adjustable)
Tube voltage 100~160 kV (adjustable)
Beam divergence angle 90°
Cooling/operation cycle sealed oil cooling/100 %
Working Environment
Temperature/humidity 0℃~45℃/20%~95% (non-condensable gas)
Storage temperature/humidity -20℃~60℃/20%~95% (non-condensable gas)
Voltage 220VAC(±10%) 50±3Hz
Power loss 1.0KW (max)
Noise < 55dB
Operator station 3-strand cable between operator station and host
