Needle Detector, XR-630K

Food Inspection Machine, Metal Wire Detection Equipment, Metal Detector for Cloth, Shoe Inspection Equipment, Metal Detector Company

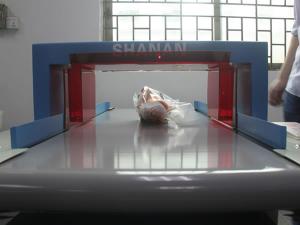

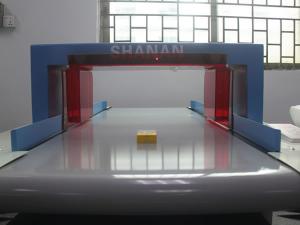

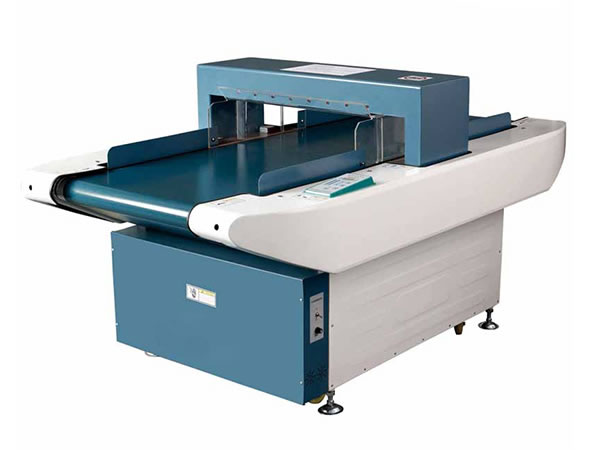

XR-630 needle detection machine is designed to search broken needle, metal wires, and other ferromagnetic nonferrous metals in raw materials or products, to eliminate the risk that the small metal pieces may bring users or manufacturers. It is widely used in metal detection operations for toys, cloths, zippers, metal buttons, shoes, chemical, leather, and knitted fabric, as well as in food inspection industry.

As a senior China metal detector company, Jinzheng offers you a comprehensive range of security detection solutions.

XR-630 metal detector is widely applied in industries where there is a demand for detecting metal foreign bodies, like cloth manufacturing, rubber toy processing, show making, bedclothes, metal buttons, zipper head, chemical processing, food production, medicine manufacturing, and meat and fishery processing, etc.

Main Features
1. The inspection device adopts technology from Japan, imported core parts, and food grade conveyor
2. 8 functions available for option: automatic detection, stepless sensitivity adjustment, counter, auto-sensing start, power saving, protection, automatic conveyor stop or return
3. Detection efficiency of the metal detection equipment reaches 100%. The device can work continuously
4. When there is broken needle or metal items detected, the machine will alert, stop and return to the starting point, and then restart automatically
5. Sensitivity is adjusted from 0 to 100 grade by an easily-operated touch panel according to different detection needs
6. Defective products are separated from good ones intelligently. Auto counting function is available
7. The machine is designed to show year, month, and time
8. With an intelligent control system, users can make the machine detect the duration and distance of rewinding
9. The dual detection system doubles sensitivity of the machine comparing with other metal detecting machineries
10. B and C type testing function available; manual or automatic settings
11. The light helps show exactly where the broken needles are

Technical Parameters
Detection approach electromagnetic induction
Detection sensitivity (mm) ≥FeØ0.7 ≥FeØ0.8 ≥FeØ1.0 ≥FeØ1.2
Detection height (mm) 100 120 150 200
Detection width 600mm (customized)
Detection adjustment 0-10 level
Alerting method audible alert, shutdown, go backwards, and then restart
Voltage Ac220V 50-60Hz
Power 100W
Dimension 1650×1050×900mm (L×W×H)
Weight about 180KG
