Applications: metal can, plastic container, glass container, etc
SpecificationMax detection accuracy | lead: φ 0.2mm; stainless steel ball: φ 0.4mm; ceramic ball: φ 0.8mm; bone: φ 0.8mm; glass: φ 1.0mm | |
Inspection dimension | max width | 180mm |
max height | 285mm | |
Max dimension allowed to pass | 350*310mm (width*height) | |
Conveyor belt width | 200mm | |
Conveyor height | 850±30mm | |
Conveyor speed | 10-90m/min | |
Bearing capacity | 10Kg | |
X-ray output | 40-150kVp/2-7.5mA | |
X-ray leakage | < 3μSv/h | |
Detector | linear scanning | |

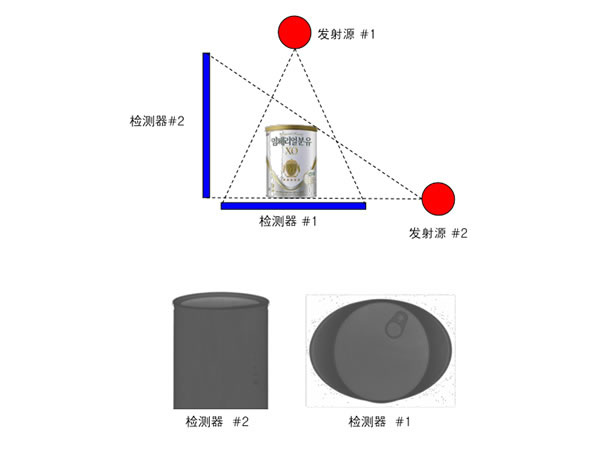

X-ray direction | double light | |
Pixel size | 0.4mm | |

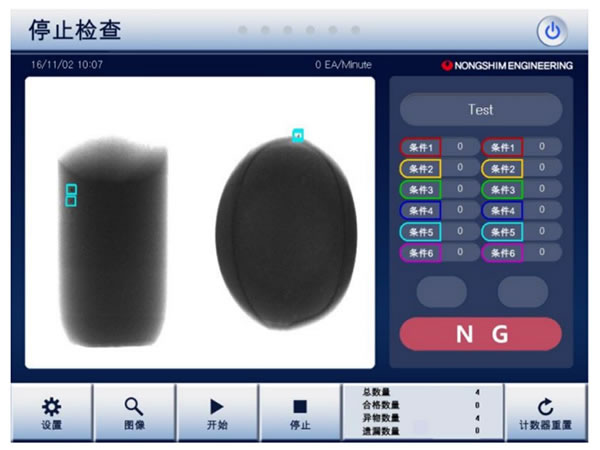

Monitor | 15-inch LCD touch screen | |
Operation method | by touch screen | |
Software | Intellisense X-ray Inspection System | |
System | Windows 7 | |
Port | USB | |
Parameter setting | manually/automatically | |
Shell material | SUS304 | |
Conveyor material | PU belt | |
Air conditioner | internally-circulated industrial air conditioner; automatic temperature control | |
Protection method | removable protective curtain | |
Cleaning | cleaning job is done conveniently for the conveyor belt can be removed without tool | |
Power supply | AC220/230V, 50/60Hz | |
Environment | temperature: 5-35℃; humidity: 30-85%RH (no condensation) | |

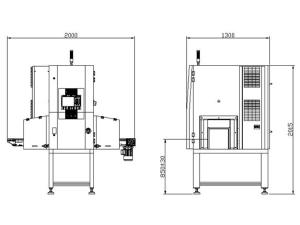

Machine dimension | 2000*1300*2015mm (L*W*H) | |
Machine weight | 600Kg |
