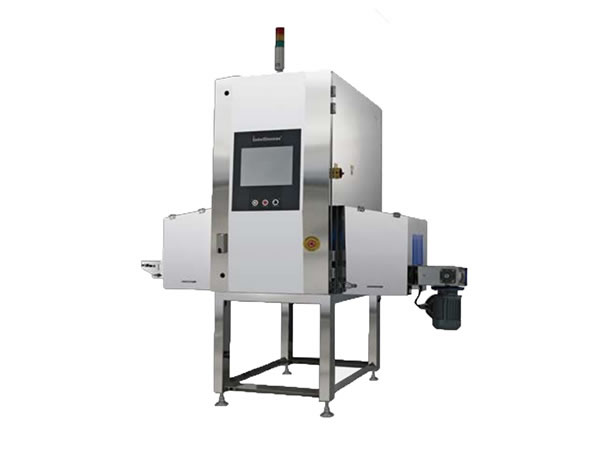

X-Ray Food Inspection System, XR-9000D

Glass Detector, X Ray Detector for Beverage Production, Food Safety Inspection Solution, Food Testing Solution

Applications: glass bottle (testing the glass shards at bottom)

Max detection accuracy lead: φ 0.2mm; stainless steel ball: φ 0.4mm; ceramic ball: φ 0.8mm; bone: φ 0.8mm; glass: φ 1.0mm
Inspection dimension max width mm
max height mm
Max dimension allowed to pass 350*310mm (width*height)
Conveyor belt width 85mm
Conveyor height 1100±30mm
Conveyor speed 10-100m/min
Bearing capacity 10Kg
X-ray output 40-80kVp/0.2-5mA
X-ray leakage < 3μSv/h
Detector linear scanning

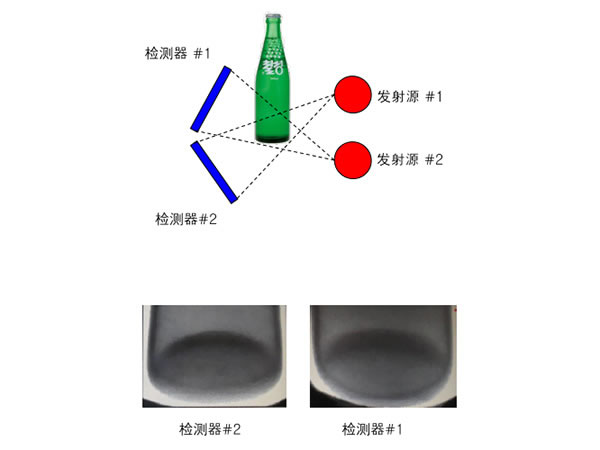

X-ray direction double light
Pixel size 0.4mm

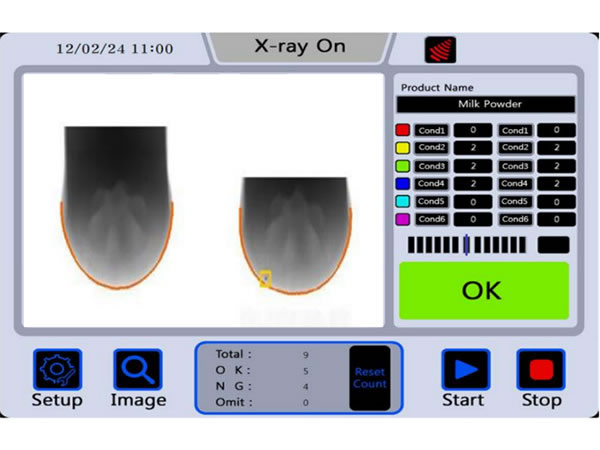

Monitor 15-inch LCD touch screen
Operation method by touch screen
Software Intellisense X-ray Inspection System
System Windows 7
Port USB
Parameter setting manually/automatically
Shell material SUS304
Conveyor material PU belt
Air conditioner internally-circulated industrial air conditioner; automatic temperature control
Protection method removable protective curtain
Cleaning cleaning job is done conveniently for the conveyor belt can be removed without tool
Power supply AC220/230V, 50/60Hz
Environment temperature: 5-35℃; humidity: 30-85%RH (no condensation)
Machine dimension 3500*1300*1795mm (L*W*H)
Machine weight 700Kg
