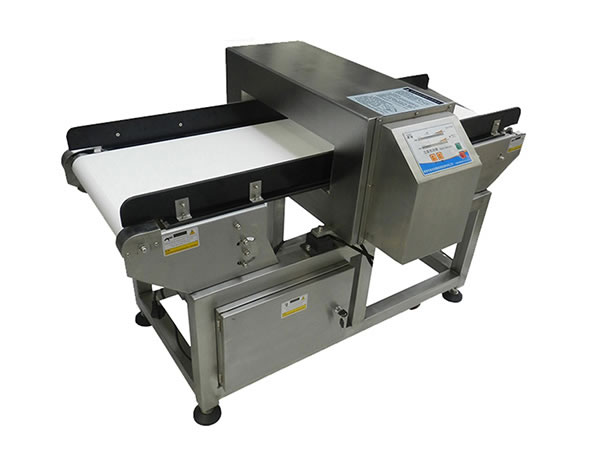

High Sensitivity Metal Detector Conveyor, XR-508K

Food Quality Inspection Machine, Needle Detector for Textile Production, Metal Testing Equipment for Meat Processing, X Ray Machinery

Juzheng is a China detection equipment company incepted in 2006. We are specialized in offering the most comprehensive security inspection solutions for various industries.

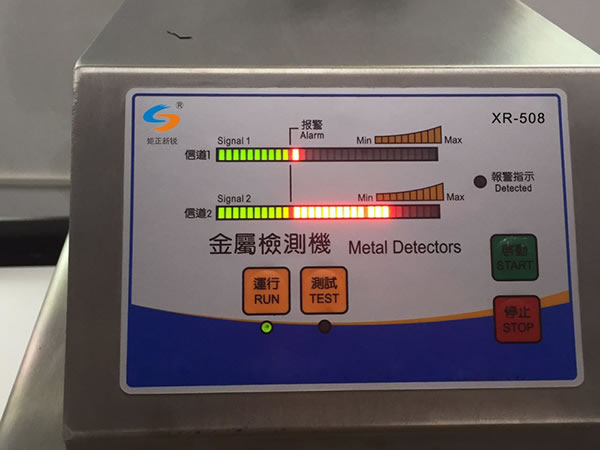

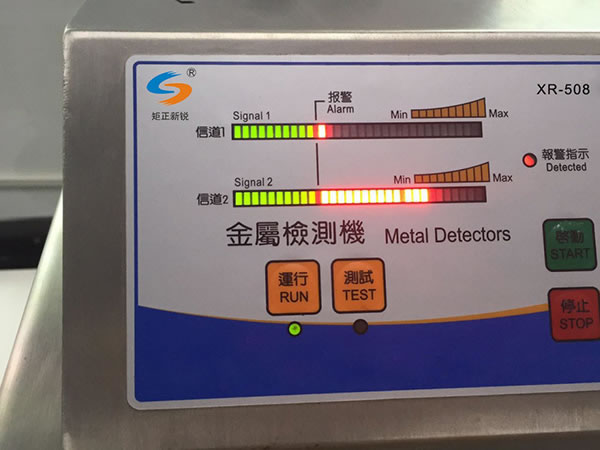

This metal detector is able to identify various magnetic or nonmagnetic metals like iron, stainless steel, copper and aluminum exactly even when the metals are embedded in the materials. Sensitivity and anti-interference capability of the detection system is powerfully guaranteed by the 2-way balanced coil signal detection circuit merging technology. When a metal object passes, the indicator will show different brightness according to the metal size.

Main Features
1. This metal detecting system is designed to eliminate the interference from products themself. For example, products with high moisture may send a signal similar to that of metal to the detector, and thus reducing the testing accuracy
2. When several metal signals pass, the inspection instrument will record the number of signals automatically so that no products are missed

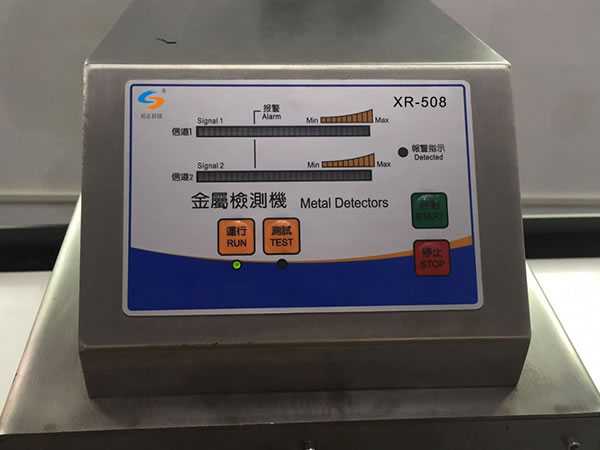

3. ADLINE microprocessor controller is employed

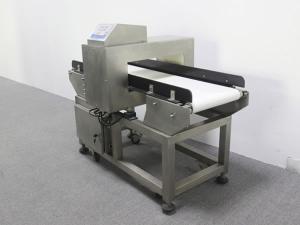

4. The conveyor adopts fully-welded high-strength stainless steel structure and PU belt
5. Metal detection sensitivity is maximized by special transmission structure
6. Customized modular design for different needs
7. Food grade stainless steel and open delivery system for easy cleaning
8. The conveyor suits production lines and detects automatically
9. Removal devices like flap plates and telescopic belt are available. The system is in line with IFS and HACCP standards

XR-508K metal detector conveyor is an ideal choice for the quality inspection system of industries like food processing (bread, steamed bread, dumplings, biscuits, and bun), medicine manufacturing, toy making, cloth and shoe making, chemical processing, and leather producing, etc. Metal impurities like iron or non-ferrmagnetic metals (nonferrous metals like iron, copper, aluminum and stainless steel are included) are picked out from the raw materials by the detection system.

Technical Parameters
Model XR-508K
Machine type Standard Nonstandard (special specification)
Tunnel width (mm) 400 400- (customized)
Tunnel height (mm) 100 120 150 200 250 300 350 400
Standard detection sensitivity diameter of iron ball (Φ mm) ≥0.6 ≥0.8 ≥1.0 ≥1.2 ≥1.5 ≥2.0 ≥2.5 ≥3.0
diameter of balls made of non-ferrous metal like copper and aluminum (Φ mm) ≥1.0 ≥1.2 ≥1.5 ≥1.5 ≥2.5 ≥3.0 ≥4.0 ≥4.5
304 stainless steel ball (Φ mm) ≥1.2 ≥1.5 ≥2.0 ≥2.0 ≥2.5 ≥3.0 ≥4.0 ≥4.5
Alerting manner stop automatically once a metal foreign body is detected; the buzzer alarm
Machine material machine frame is made from 304 stainless steel
Machine dimension (mm) 1330mm ×700mm ×1000mm (L×W×H); other dimensions are customizable upon request
Machine weight about 250KG
Power 220V 50Hz 90W
Remarks: parameters listed are values tested in standard conditions; the actual performance may vary as the environment and the products tested change; standard machines are in stock supply
